Dashboard¶

context-guru ships a persistent observability dashboard: an embedded single-page UI plus a JSON/SSE API, backed by a durable per-request store. It exists to answer one question honestly — what value is context-guru providing? — including when the answer is "less than you hoped".

context-guru-proxy --preset general --dashboard
# open http://localhost:4000/dashboard/

/dashboard/ opens the Overview. The older links /dashboard/#home and /dashboard/#cache open Overview and Cache strategy, and /dashboard/home.html redirects to the dashboard.

The dashboard uses the words preset and cache strategy. The older names, compaction and keep-alive, mean the same things.

It is off by default. Turning it on adds /dashboard/ and /api/*; every existing route, including /stats, is byte-for-byte unchanged.

What you'll see¶

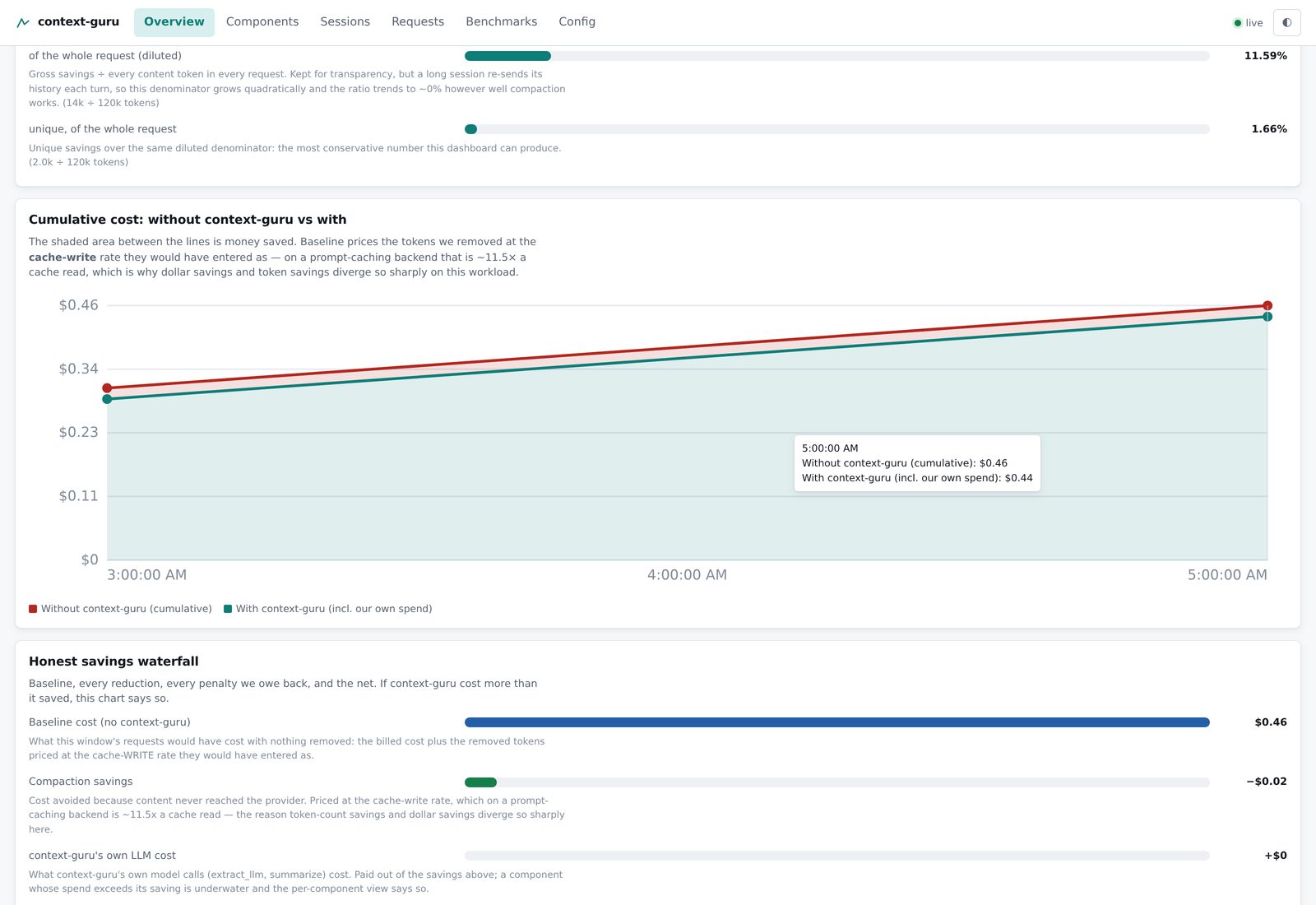

• Overview — "What context-guru saved": three rows (Cache strategy, Your preset, Tools and skills filter), each in dollars and tokens against what you spent, with an Estimated or Upper bound badge. The cache strategy row notes that whether to keep it on is a forecast (see the Cache strategy tab), and a note says the provider's own cache discount is not counted. Below: "Tools and skills to remove" (a ranked list, with /context-guru:remove-mcp-and-skills and /context-guru:insights tools), "About the other tabs", and one closed "Detailed diagnostics" section with five plots (net saving over time; money saved and added, where an outlined bar is an upper bound; tokens removed; where input tokens went, as 100% columns of cache read, cache write and fresh; time added per request and requests with cache misses) and a live requests table. Every plot shows exact figures on hover.
• Savings — Cache strategy (also called keep-alive), Inventory (the tool inventory) and Usage over time.

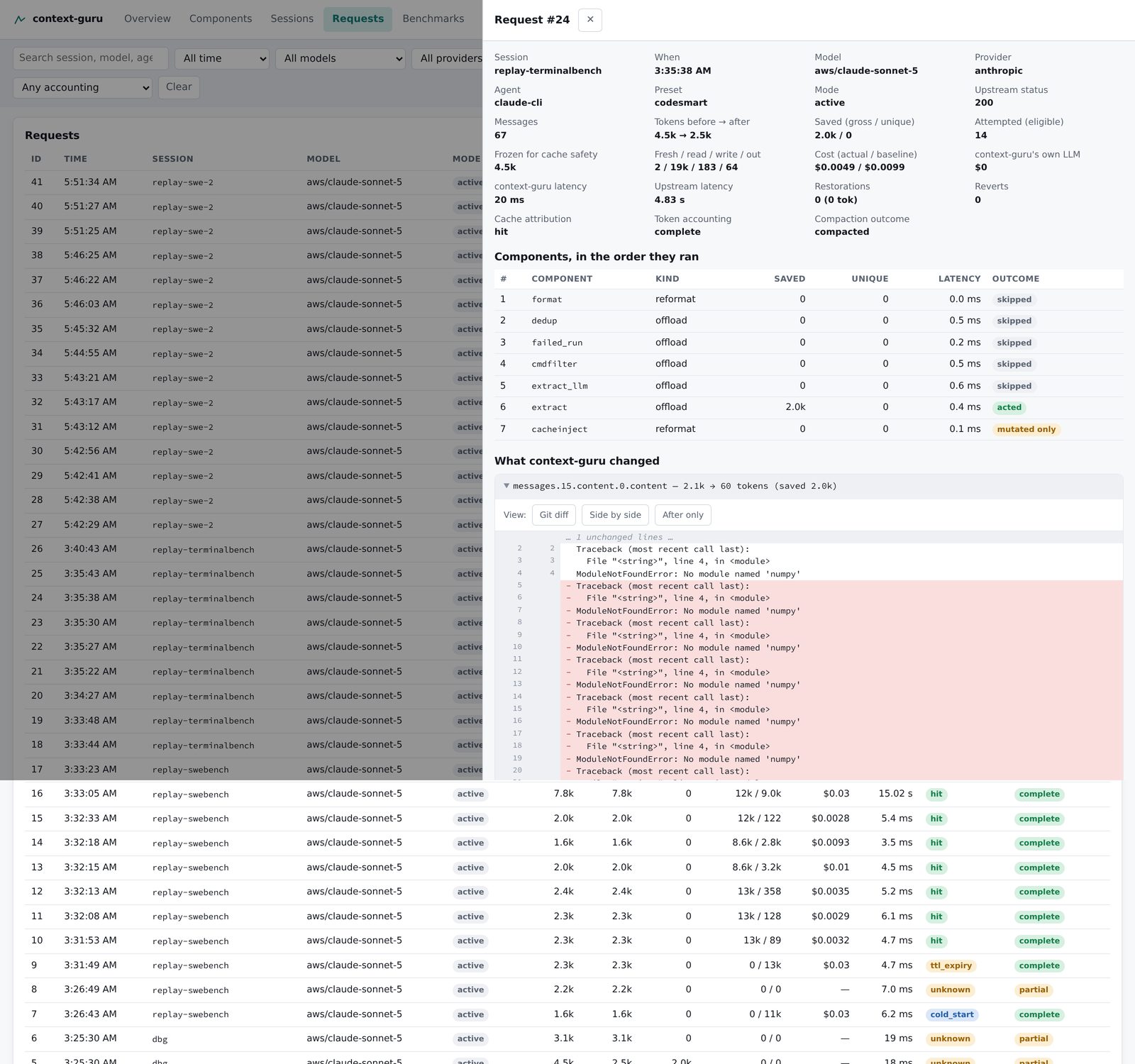

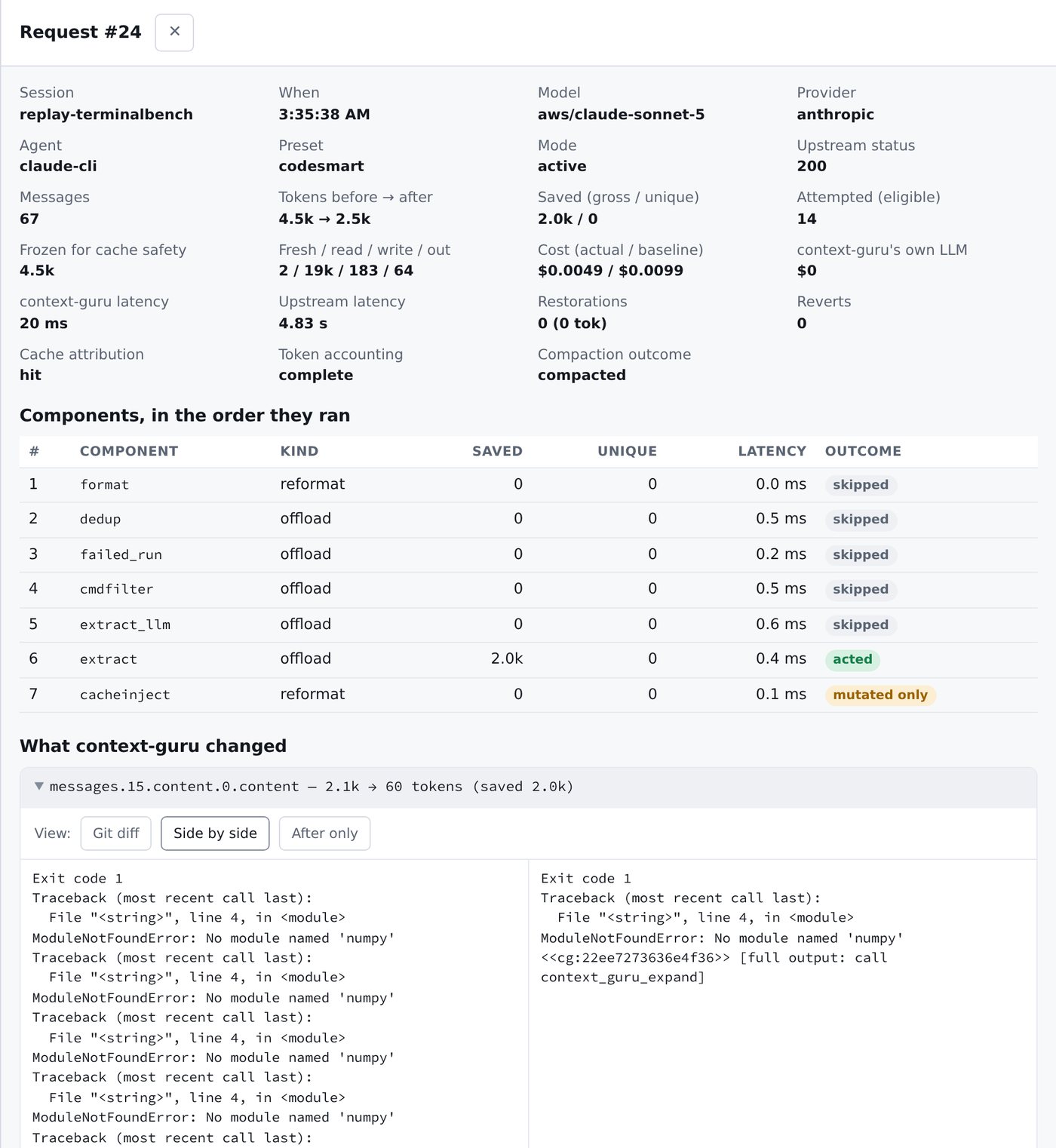

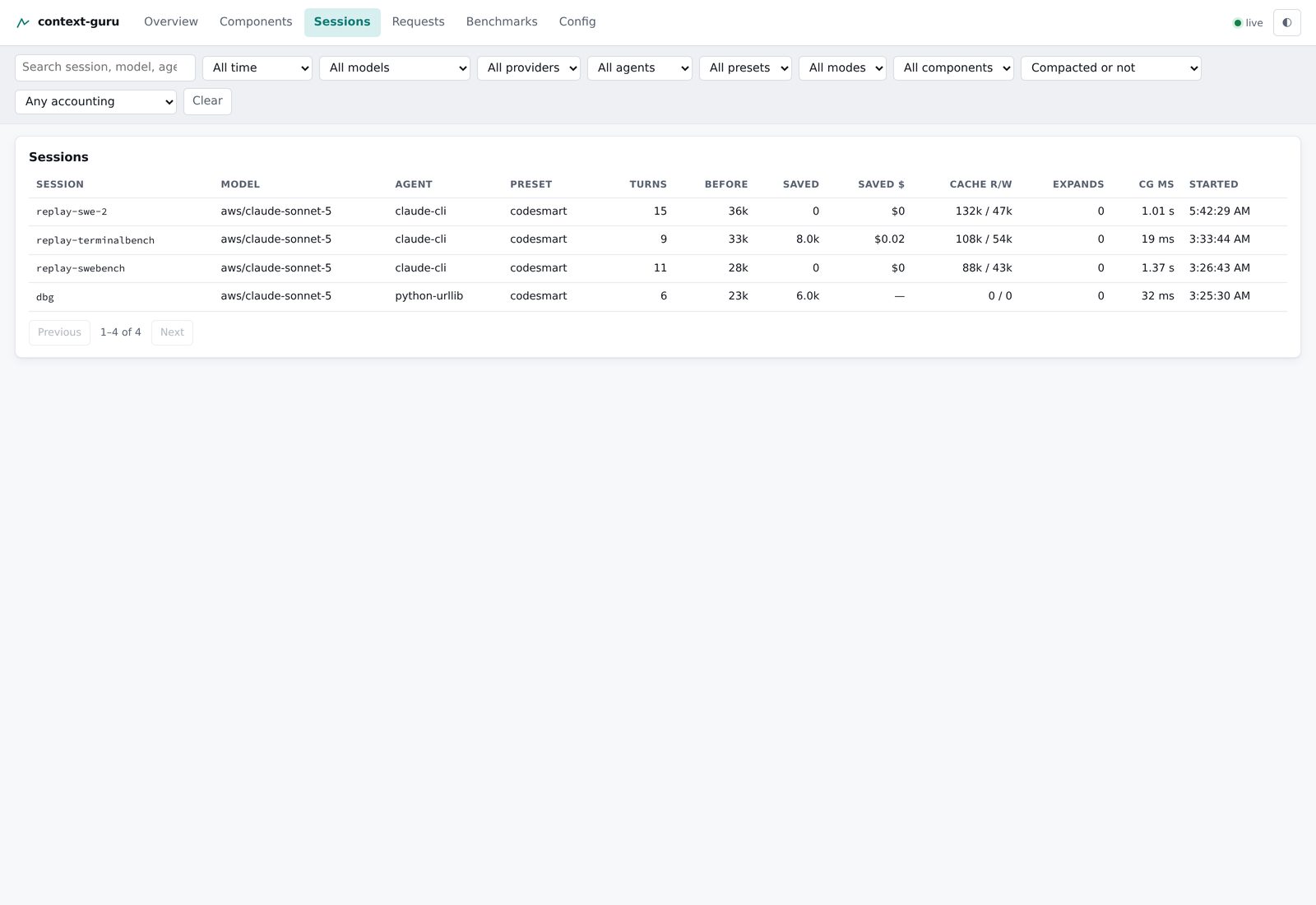

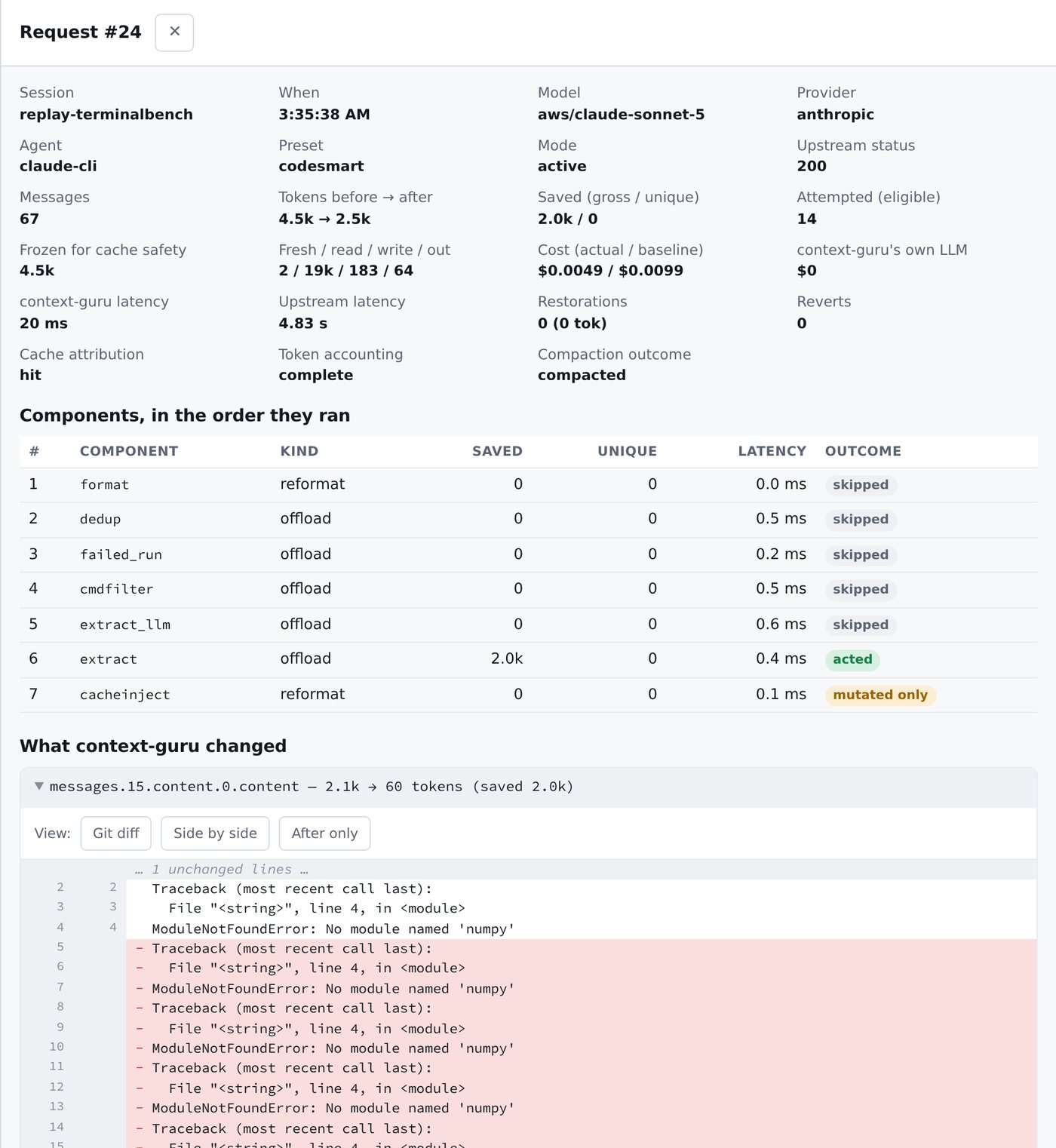

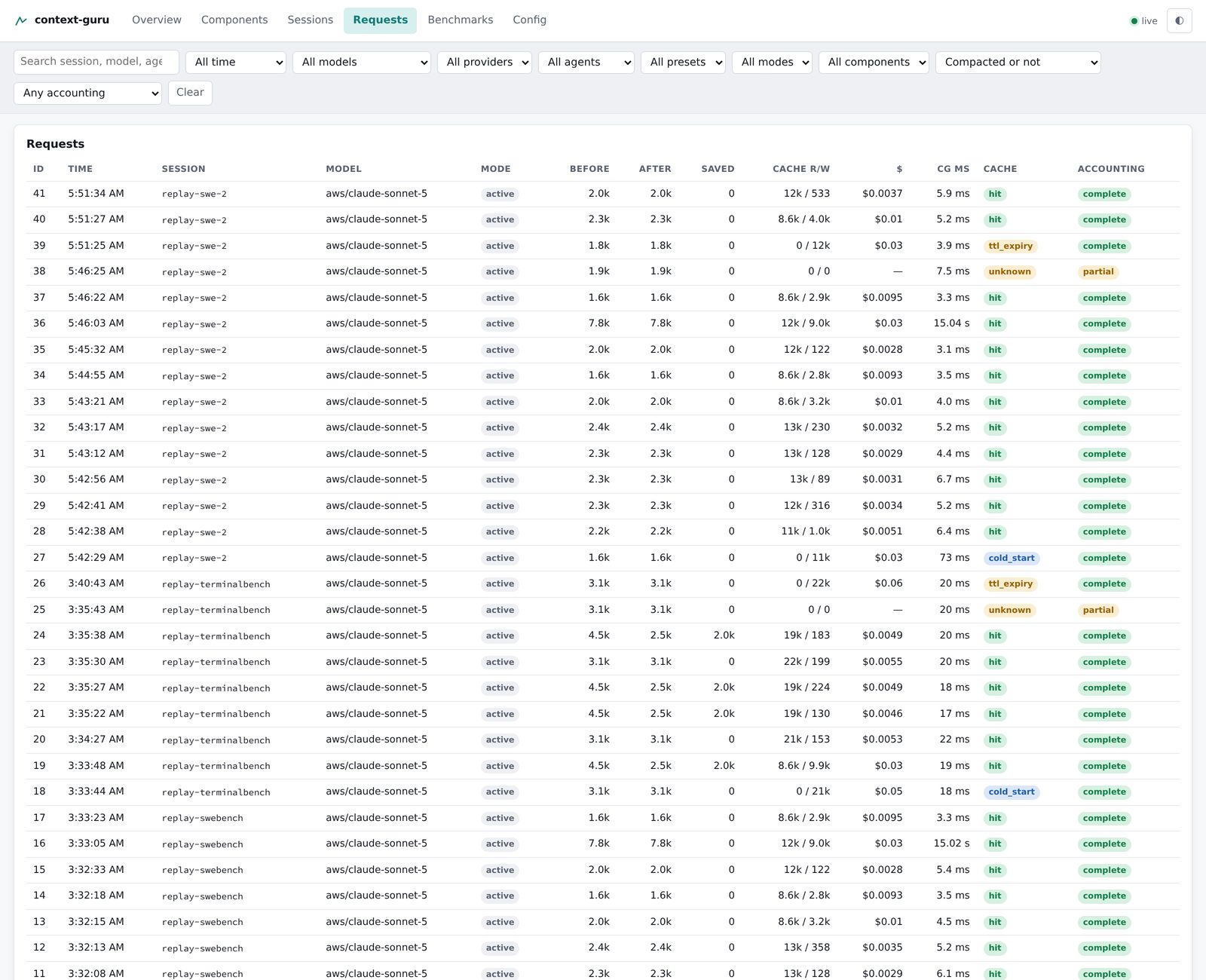

• Traffic — Sessions (newest or costliest first; six columns, more with a checkbox) and Requests, including a git-style diff of exactly what was rewritten on the wire.

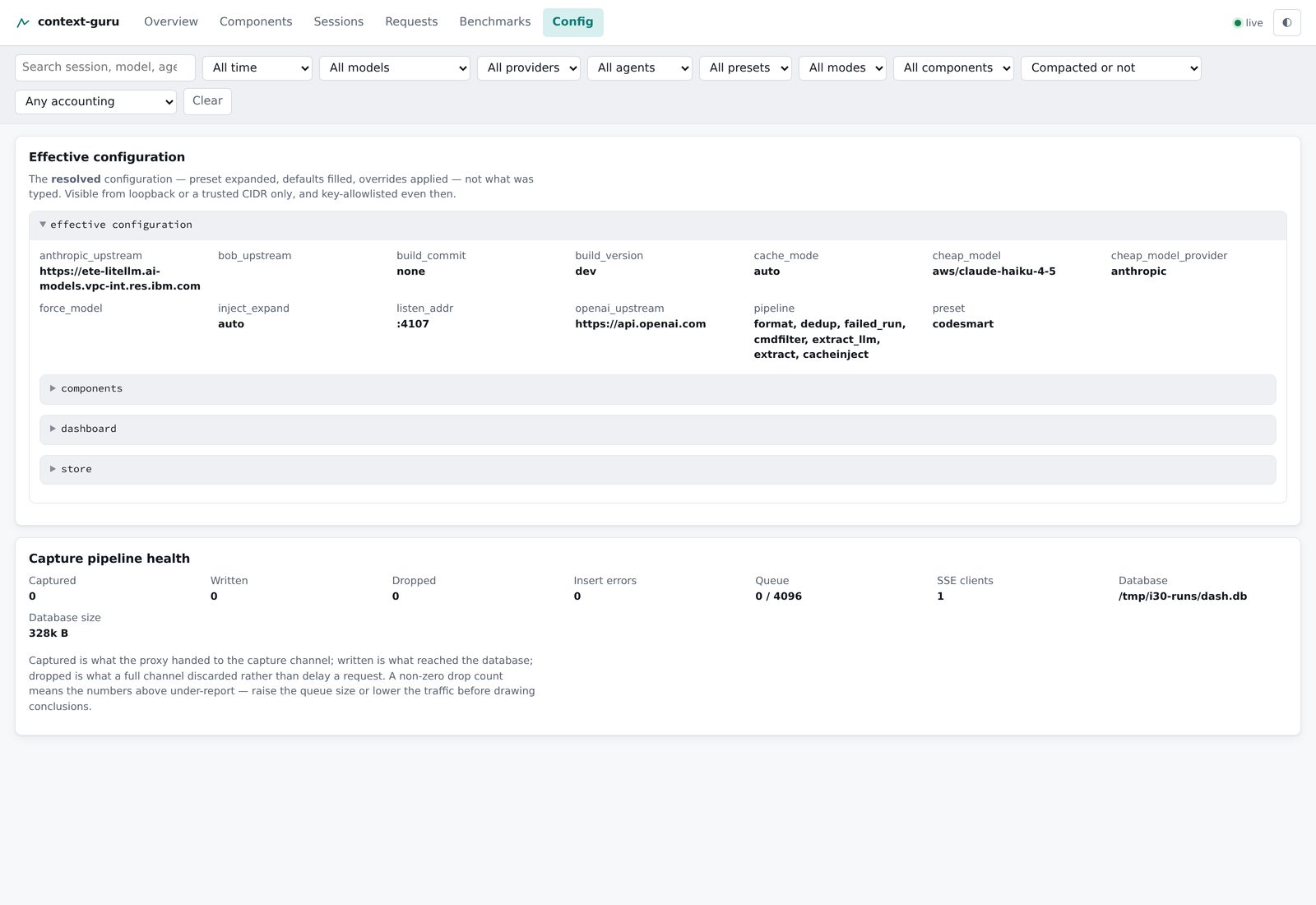

• Admin — Config, Cache strategies, Tenants, Setup, Settings, Archive and Feedback (some of these appear only in a hosted service).

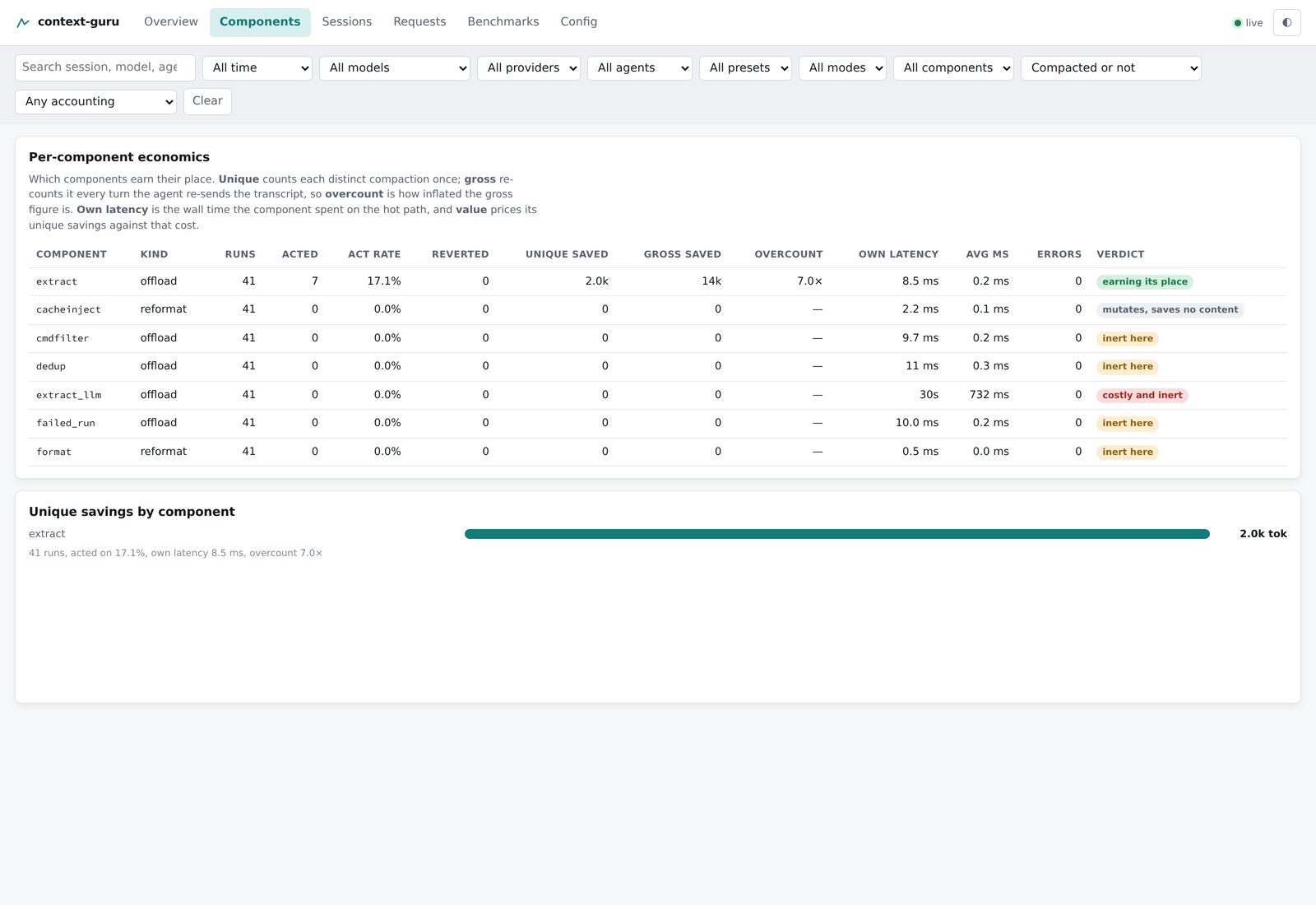

• Advanced — Preset steps (per-component economics), Cache detail (the KV-cache view), and Strategy campaigns (per-account cache strategies).

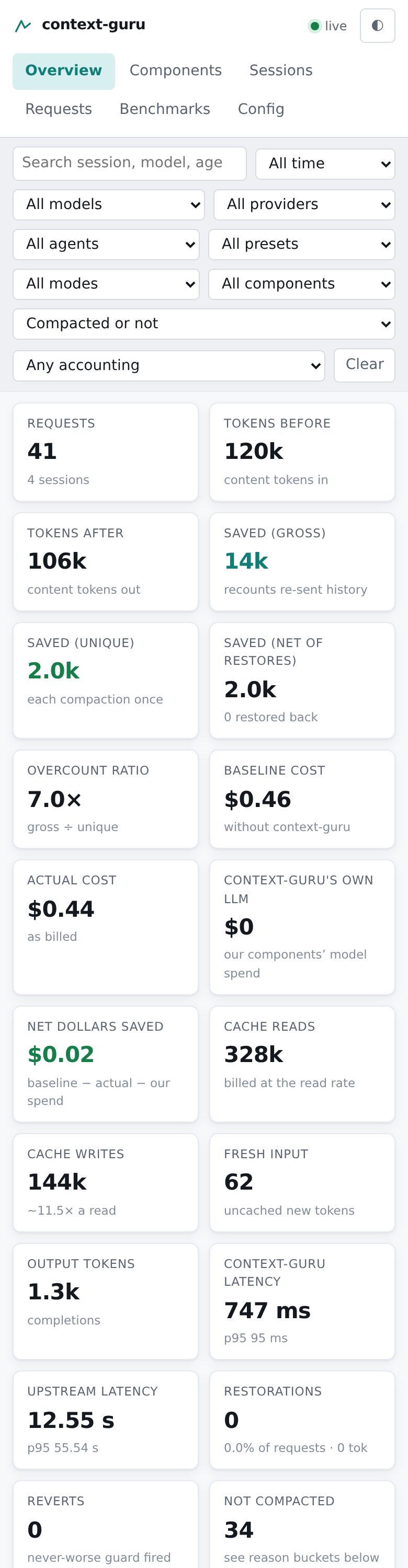

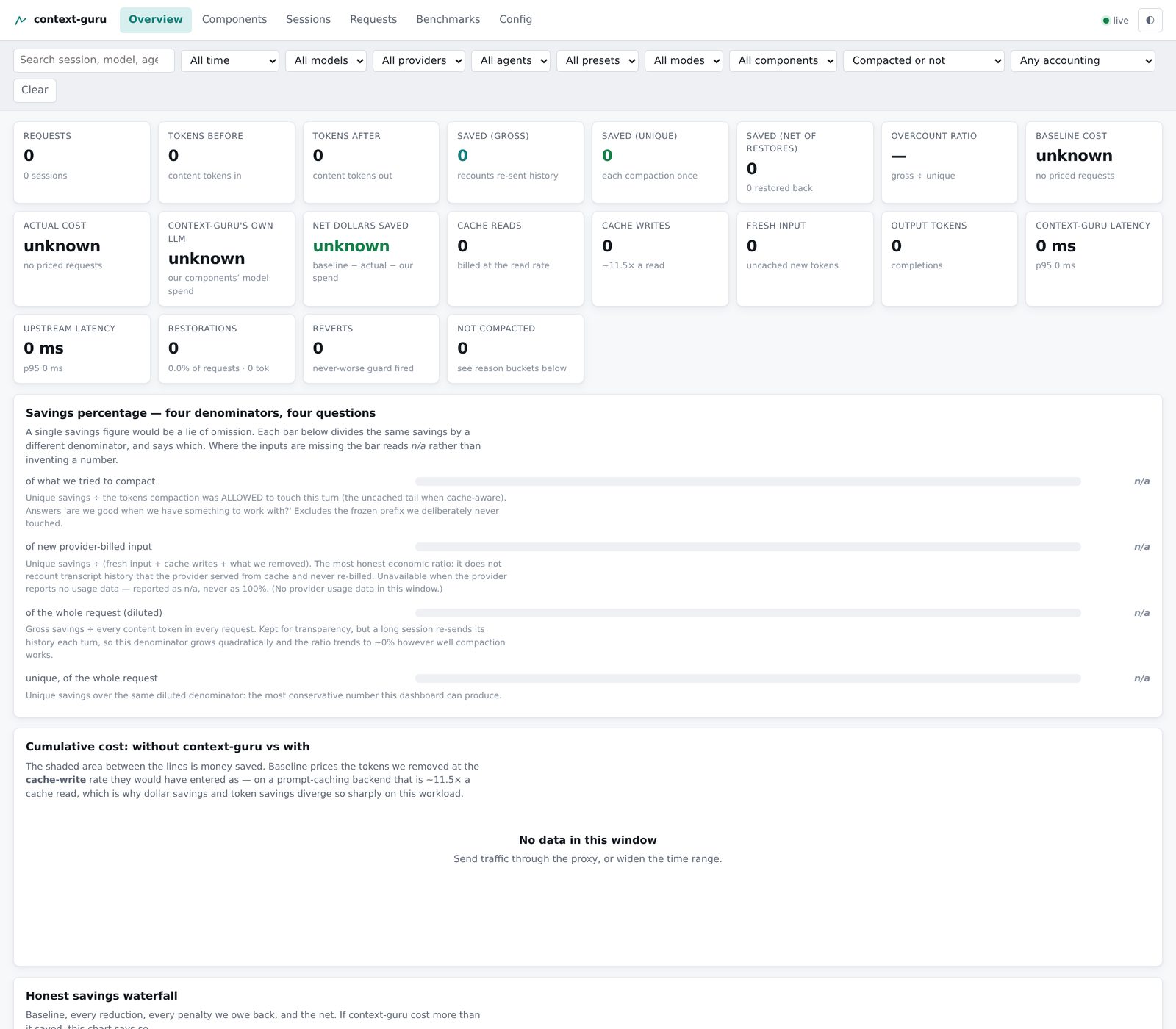

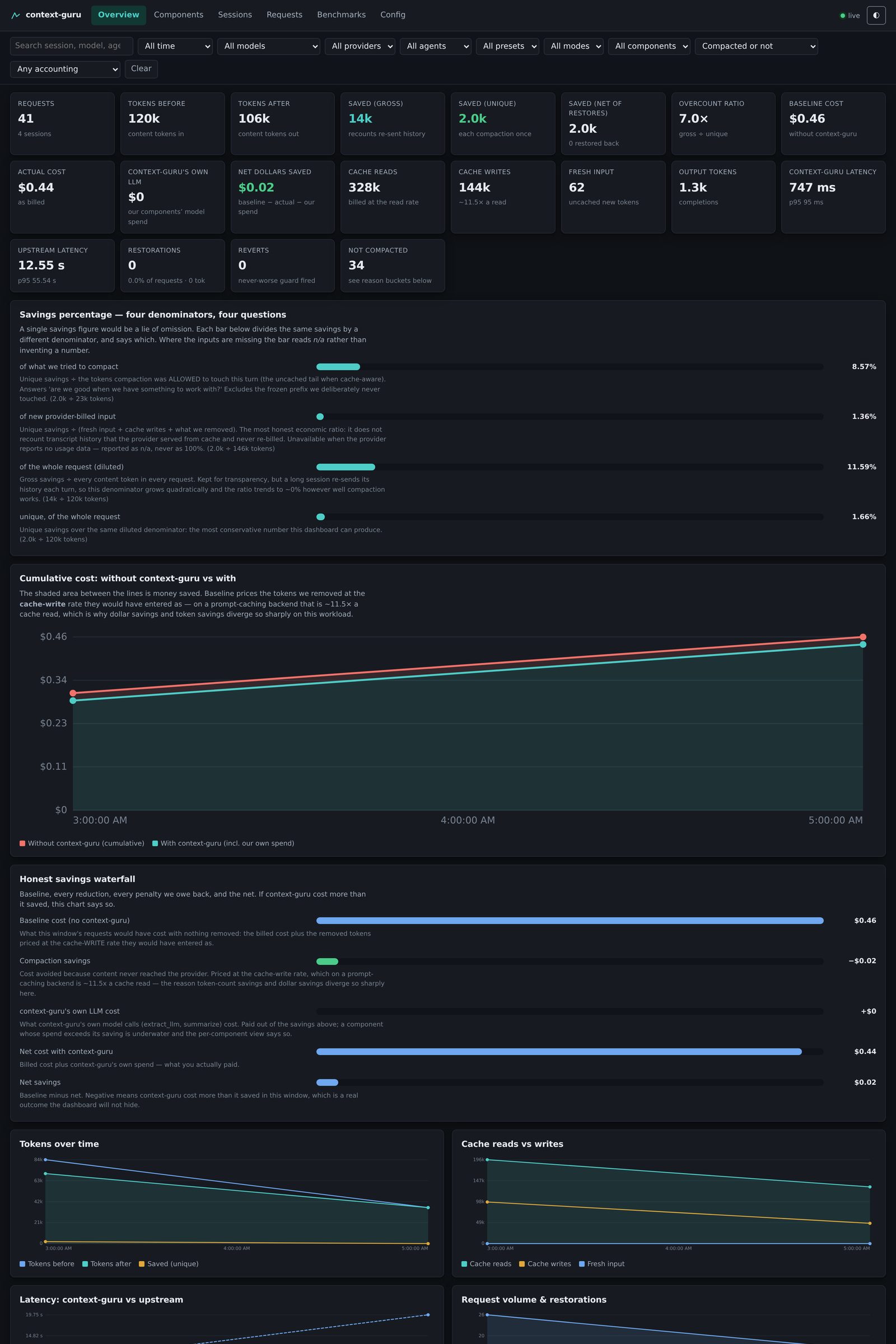

Every tab starts with a title and one line saying what it shows. Dark mode, small viewports, and empty states (a blank dashboard explains why each panel is blank) are all handled.

Honest-metrics rules¶

The dashboard follows a few rules that are the difference between a dashboard and a marketing surface:

1. Every ratio names its denominator. "Saved" is ambiguous on its own — gross (re-sent history counted every turn) and unique (content that genuinely never reached the provider) are shown separately, never blended into one number.
2. The cost of our own safety mechanisms sits beside their benefit, as a number — not a promise in prose.
3. A component that ran and did nothing is distinguishable from a component that never ran at all. Only components actually in your pipeline appear in the table.
4. Cache misses are attributed, and a cold start is not treated as a failure.
5. "Why didn't you compact this?" is a first-class answer, not an absence of data.

Access¶

Aggregates are open on purpose — a proxy bound to 0.0.0.0 should still show its own numbers. Content and prompt text are gated because a transcript can carry a user's source code. There is no "disable observability in production" switch, for a tool whose value is observability.

Running as a hosted service adds a sign-in gate and a few tenant-scoped tabs (Setup, Settings, Archive, and — for a manager — Tenants), on top of the same UI.

Storage & retention¶

SQLite (pure Go, no C toolchain), in WAL mode. Retention is bounded by both age (--dashboard-retention) and size (--dashboard-max-bytes), so a burst can't blow past the limit and a quiet week can't erase itself. --dashboard-db :memory: runs with no persistence at all.

Tool inventory panel¶

How much of what your agent carries in every request does it actually use?

An agent declares its whole toolbox — every tool, every MCP server, every skill — on every request, inside the cached prefix. The panel scans the request's tools array and system-prompt skills listing (never the conversation itself), records the token weight of each declaration, and tracks which ones actually got called. On real Claude Code traffic, roughly 80% of declared tokens are typically never invoked in a session.

Reading it: GET /api/tools for the rollup, GET /api/prompt for one session's actual prefix text. See Config & routes reference for both routes.

Two read-only routes serve the plugin's cost commands (/context-guru:insights and /context-guru:status): GET /api/spend/explain?since=&tz= prices the window at the configured gateway rates by token type, classifies full-prefix cache rewrites from the token columns (cache_write >= 0.8 x context; the cause is inferred from the idle gap and message count), and reports live session cache state and Context Guru's own ledger; GET /api/tools/last-used returns when each tool or skill was last called (names and times only).

Two more serve the status line. GET /api/stats?lean=1&session=<id> is one session's totals from a single indexed read, including keepalive_pings and keepalive_ping_usd; lean=1 with no session and no since/until is answered by the full handler. GET /api/cachestate?session=<id> is the session's live cache state per thread (threads[], a:<agent id> for a sub-agent), and its money in one read: money.main for the main thread and money.others summed over every other thread, each saved_usd of baseline_usd. baseline_usd is what those requests would have cost without context-guru (the uncompacted baseline plus the cache-split and keep-alive savings); saved_usd is that minus what was paid, context-guru's own model calls and pings included, so it never exceeds baseline_usd. Each listed thread carries its own pair. A thread the keep-alive still plans to ping also carries pings_left and held_until_ms: when its cache goes cold if nothing else is sent (the last planned ping's start plus the cache lifetime).

The session and each thread also carry next_warm_usd and next_cold_usd: what the next request costs for the cached prefix if the cache is still warm (a cache read) or already cold (a rewrite; the same number as rewrite_usd). Both are left out when the model has no price.

POST /api/me/cache/ping with {"session": "<id>", "thread": "<id, optional>"} is the Ping button. It sends one keep-alive ping on that thread now, with the same request and the same price as a scheduled ping. It answers 200 with cache_read, cache_write, ping_usd, rewrite_usd, saved_usd (the write it avoided minus the ping) and warm_until_ms. Other answers: 409 cold (nothing left to keep warm), 409 not held (keep-alive is off, so the proxy keeps no body or key to ping with), 404 unknown session, and 429 too soon (one press per thread every 30 seconds). It reaches only the caller's own sessions. The caller is the same as for /api/adapt/*: the dashboard cookie, the account's own proxy token, or a direct loopback request to a single-tenant proxy.

pingable and ping_reason on /api/cachestate say whether a press can work. pingable is true only while the proxy holds the thread. When it is false, ping_reason is one of: not opted in (no keep-alive for the account and the request did not carry the header), below limits (keep-alive is on, but the thread is under its minimum prefix or fails its gates), over budget (one ping would cost more than the per-ping cost ceiling), too large (the body is over 8 MiB), unsupported (extended thinking, or a route that cannot be pinged cheaply), unavailable (the route is failing in a row, or the provider refused this credential), pings used (the planned pings ran out and the proxy let go of the thread), stopped (the proxy stopped the thread after a miss, a refused ping or a failure), expired (a manual-only hold ran out) and no entry (nothing is known about the thread: the proxy restarted, or has seen no request on it since). While a thread whose planned pings ran out is still held and its cache can still be warm, a press is allowed, under the same cost ceiling and 30-second gap. A press stays refused after a miss or a refused ping.

Ping with keep-alive off. A request that carries x-context-guru-ping: 1 is held for the button even when the account has no automatic keep-alive. Nothing is pinged for it. The proxy keeps the body and the key from the start of the LAST REAL request for at most 300 seconds on a 5-minute cache, and for at most 59 minutes on a 1-hour cache (the proxy reads the tier from the traffic), then releases and zeroes them. Only a new request starts that time again. A press never does, so pressing cannot keep a credential held. The usual limits still apply: 8 MiB per body, 512 threads, 128 MiB in all, and the per-ping cost ceiling. One account may hold at most 16 such threads and 32 MiB, and they are released before any automatic keep-alive hold, so a client that sends the header cannot starve other accounts. Claude Code sends the header when ANTHROPIC_CUSTOM_HEADERS in its settings env contains x-context-guru-ping: 1 (one Name: Value per line when there are several headers). The proxy never forwards it upstream.

Its row is a keep-alive row with manual_ping set. GET /api/stats reports these rows as manual_pings (count, ping_usd, and saved_usd net of the pings' cost). They are a savings category of their own: they join total_saved_usd, and no cache strategy's ledger counts them. The figure is an upper bound. A press needs the proxy to hold the thread for keep-alive, so with automatic pings on it can overlap the keep-alive credit for the same avoided write. saved_usd is avoided - ping summed over all presses, so a ping that missed shows as a loss; the per-press saved_usd in the reply is never below 0, so the two need not match. A press is refused with 409 over budget when one ping would cost more than the per-ping ceiling, and ?tenant= is ignored: it pings only the caller's own account.

Top to bottom, the panel shows:

• Headline tiles and gauge — declared vs. invoked tokens, over the controllable set only (your MCP tools and skills); the agent's own built-in tools are shown separately at the bottom and are never included in this ratio, since removing them isn't an option.
• Who owns your system prompt — a part-to-whole bar of the whole prefix, colored by whether that region is yours to change.
• Your system prompt, and what shares it — the prompt broken into its own sections (by markdown heading), each measured and readable.
• Carried by every request, never once called — the actionable list, grouped by what one action removes (a whole MCP server, or a single tool/skill), each group with the exact command to run.
• Realized by your removals — what a removal actually avoided on requests really sent, kept separate from the projected savings above it.
• Full declaration table and MCP/skills rollups — sortable, per-server and per-skill detail.

To act on it: add the dead weight to toolfilter's remove: list — it never removes a name you didn't list. The opt-out checkbox in the UI does the same thing without editing config, and it's reversible, but toggling it has a one-time cost: declarations sit at the very front of the cached prompt, so changing the set changes the prefix, and every live session's next turn pays a full cache-miss write instead of a cache read. Switch off everything you mean to switch off in one pass.

Declaration names and token weights are gated on tenant scoping only. The text of a declaration (the schema itself, the skill listing, the system prompt) is transcript-class data and needs the same operator + tenant consent that gates any other captured content — see Access above. Without that consent the measurement still works; only the text is withheld.

KV-cache panel¶

How long your conversations actually stay idle, what the prompt cache is costing you at that idle profile, and what a different TTL policy would have cost on the same history.

The tab sits next to Cache strategy — both answer "what is the prompt cache doing to my bill." It respects the shared filter bar (time range, model, agent, account), plus three narrowings that exist only here because they're derived rather than stored columns: time-of-day band, observed TTL tier, and whether a request has a successor at all.

Top to bottom:

• Coverage statement — what the analysis could not answer: rows with no recorded TTL, rows with no cost, conversations with a single request.
• Summary tiles — requests, conversations, median/mean idle time, 5-minute and 1-hour reuse probability, cache-hit rate as billed, requests with no successor.
• Idle histogram and survival curve — how long until the next request, and the cumulative share of conversations that had returned by each elapsed time.
• Breakdowns — the same measurements grouped by observed TTL, user, model, and time-of-day (UTC only — there is no per-user timezone in the store).
• Prices — every rate the simulation uses, editable, priced against this window's own median cached prefix.
• Strategies — pick a TTL policy from the server's registry and compare its cost against a baseline. Each cell reads $X cheaper or $X MORE rather than a bare signed number, and optimal (the ceiling — reads the true next-request time in hindsight) can never be selected as a baseline.
• Every request in the analysis — the derived dataset, sortable, linking back to the request drawer.

A few gotchas worth knowing when reading this page:

• A request with no next request in its conversation has no idle time and is excluded from every average rather than counted as an instant return.
• A blank cache_ttl on an older row means not recorded, not "no cache used" — the two are distinguished by whether the request billed at the 1-hour tier or cached anything at all, and reported as unknown rather than assumed.
• The hit rate is shown because operators ask for it, but the page doesn't sort or color by it: on real traffic, holding every prefix for an hour gives the best hit rate while costing more overall than a 5-minute TTL, because it pays a larger write cost than the reads it saves.
• A conversation is keyed by (account, session, model) — a cache entry doesn't transfer between models, so two requests in one session on different models are never treated as each other's successor.

Cost model (every rate is per-provider/model and editable in the page):

uncached input        input_tokens   × input_rate
cache read             cache_read     × cache_read_rate      (default 0.1× input)
cache write, 5m        written_tokens × write_5m_rate         (default 1.25× input)
cache write, 1h        written_tokens × write_1h_rate         (default 2.0× input)
cache premium          total_cost − uncached_cost   (negative = the cache paid for itself)

The 1-hour write rate is derived (no provider publishes one) as a multiplier over base input; both the multiplier and the resulting rate are shown on the page. Routes: four, all GET, all tenant-scoped — see Config & routes reference.

Verifying it yourself¶

CGO_ENABLED=1 go test ./dash/ ./proxy/           # unit + integration
curl -s localhost:4000/api/stats | jq '.denominators[] | {label, percent, available}'

See Config & routes reference for every dashboard flag and the full /api/* surface.
